What is NatJack?

NatJack is a newly developed network address translation (NAT) table manipulation attack class effective against most virtual and physical network infrastructure performing NAT. These attacks can be used to hijack an existing TCP connection traversing through the NAT, to intercept and maliciously alter UDP DNS responses, or to perform a denial-of-service attack.

The NatJack attack class affects an entire ecosystem of virtual and physical network infrastructure devices. Most modern network infrastructure relies on design assumptions that have remained unchallenged for decades since their original development. While these assumptions historically held under cooperative network environments, some no longer withstand adversarial conditions.

This is a systemic issue bigger than any one specific implementation and many unique NAT implementations have been found to be vulnerable.

Is my router vulnerable?

If you are a home user with a consumer-grade router, your router is very likely vulnerable, but you are most likely not at risk of an attack. For an attack to be performed, an untrusted privileged user would generally need be located behind your router. For most home users, this is not a common scenario or threat.

If you are a business or service provider, your routers, firewalls, containers, virtual machines, and other network infrastructure are likely vulnerable. This does not automatically mean you are at risk, but depending on your network setup, you could be at risk of an attack.

All tested routers and network infrastructure devices performing any form of network address translation have been found to be vulnerable to some or all of the NatJack attacks. Containerization systems including Docker and Kubernetes, and hypervisors including Hyper-V are affected by this attack class through virtual bridges and switches. Many public cloud services for containerization and virtualization are similarly affected.

In which scenarios is an attack most likely?

Corporate Networks

Where untrusted users or compromised devices, even those in a different subnet or VLAN, share the same router or firewall as trusted users.

Docker Containers

Running untrusted or compromised containers in a default networking configuration.

Kubernetes Deployments

Local or cloud deployments where a compromised pod is running on the same node as a trusted pod.

Virtual Machines

Running untrusted or compromised virtual machines in a default networking configuration.

Cloud Infrastructure

Cloud infrastructure including NAT gateways, internet gateways, firewalls, and serverless computing infrastructure can be affected when an attacker is positioned behind the NAT device.

What attacks are possible?

Many of the attacks have similar impact to an ARP spoofing attack, but bypass all existing mitigations. It is possible to perform attack variations in situations where an ARP attack would fail, including cases where the attacker and victim are positioned in completely different broadcast domains, including different subnets or VLANs, with only a shared NAT in common.

Vulnerability Description

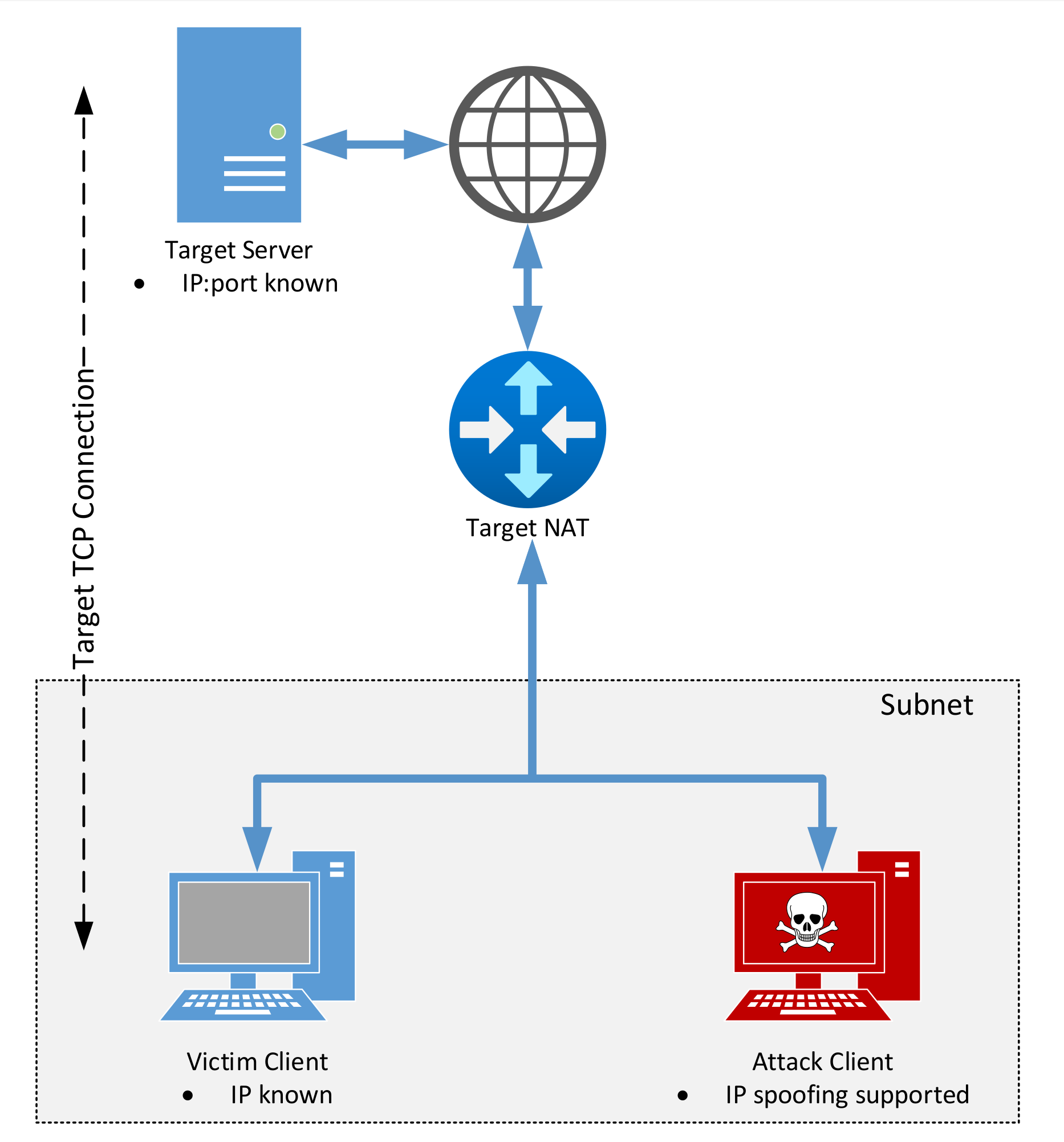

Certain network address translation (NAT) implementations allow downstream attackers to manipulate NAT table state entries in a manner that enables TCP session hijacking through downstream IP spoofing. An attacker on the LAN side of the affected device can remove or replace NAT mappings associated with an active victim TCP connection and redirect traffic to an attacker-controlled system. Successful exploitation may allow the attacker to impersonate the victim to the upstream server, intercept valid TCP traffic, inject malicious application-layer data, terminate active sessions, or perform limited man-in-the-middle attacks against certain long-lived HTTP connections.

Vulnerability Description

Certain NAT implementations allow downstream attackers to manipulate NAT table state entries in a manner that enables TCP session hijacking through coordinated upstream IP spoofing. An attacker controlling both a downstream host and an upstream attacker-controlled server can remove or replace NAT mappings associated with an active victim TCP connection and redirect traffic away from the legitimate client. Successful exploitation may allow the attacker to impersonate the victim to the target server, intercept legitimate TCP traffic, inject malicious payloads, terminate active sessions, or perform limited man-in-the-middle attacks against certain persistent HTTP connections. Exploitation generally requires knowledge of the victim’s externally mapped ephemeral port, which may be obtainable through separate NAT information disclosure weaknesses.

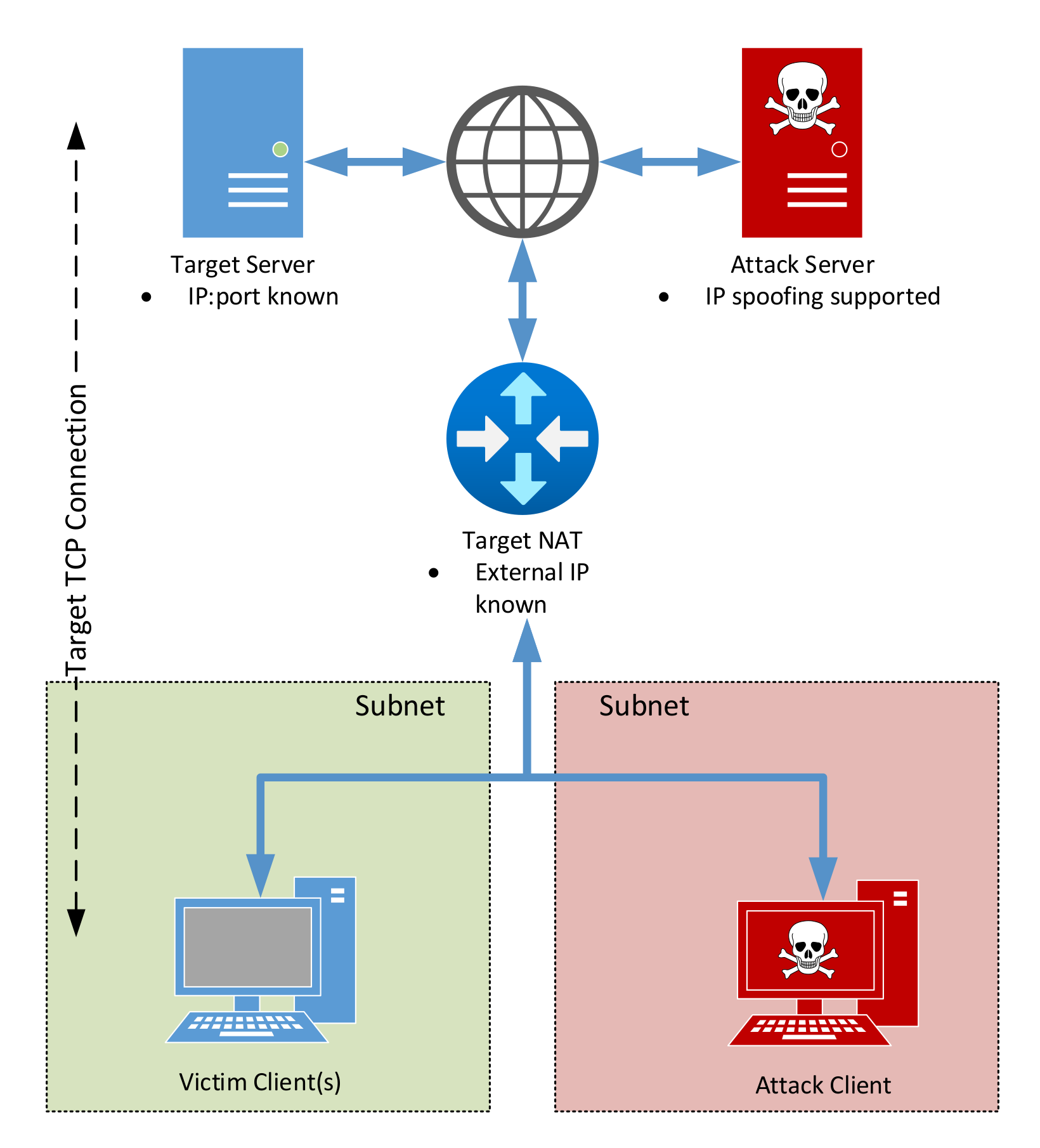

Downstream spoofing (left) and upstream spoofing (right) variations

Vulnerability Description

Certain NAT implementations improperly protect UDP NAT state entries, allowing a downstream attacker to manipulate NAT table mappings associated with DNS traffic. An attacker on the LAN side of the affected device can remove or replace an existing NAT entry corresponding to a victim’s DNS query, causing legitimate DNS responses to be redirected to an attacker-controlled host. The attacker may then craft and transmit a spoofed DNS response to the victim, potentially enabling DNS hijacking, traffic redirection, denial of service, or interception of sensitive DNS information.

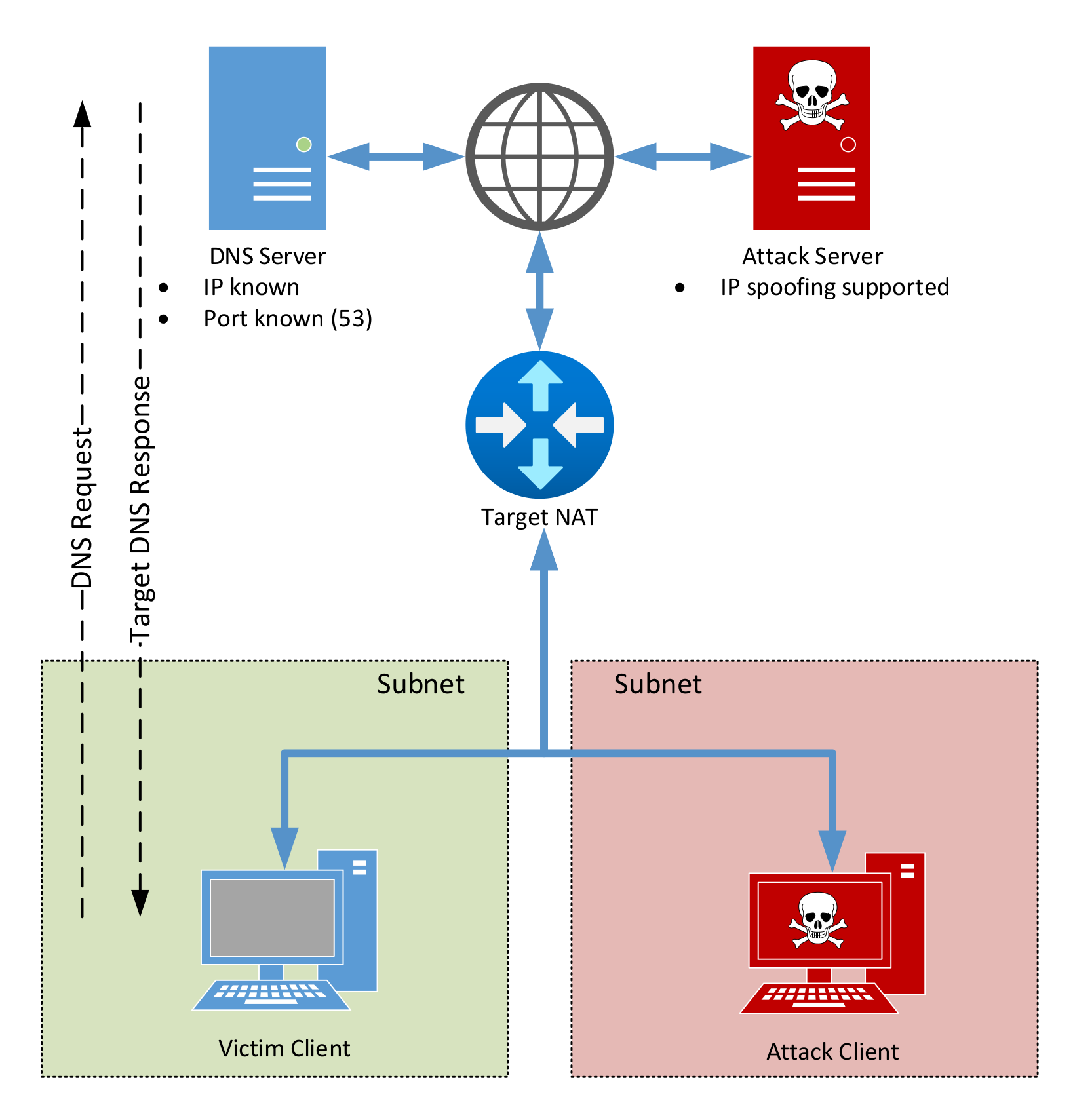

Victim port disclosure (left) and victim IP+port disclosure (right)

Vulnerability Description

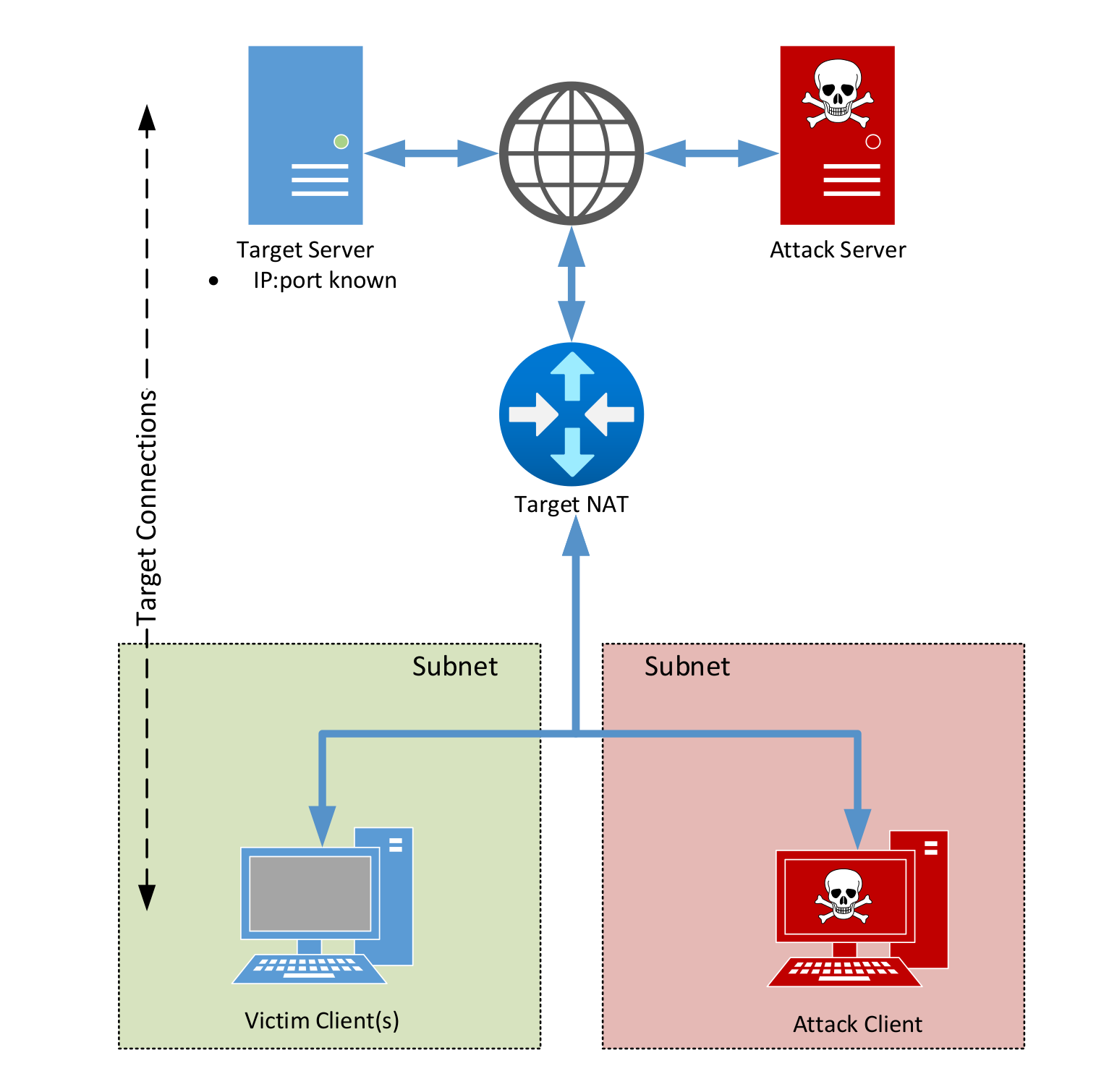

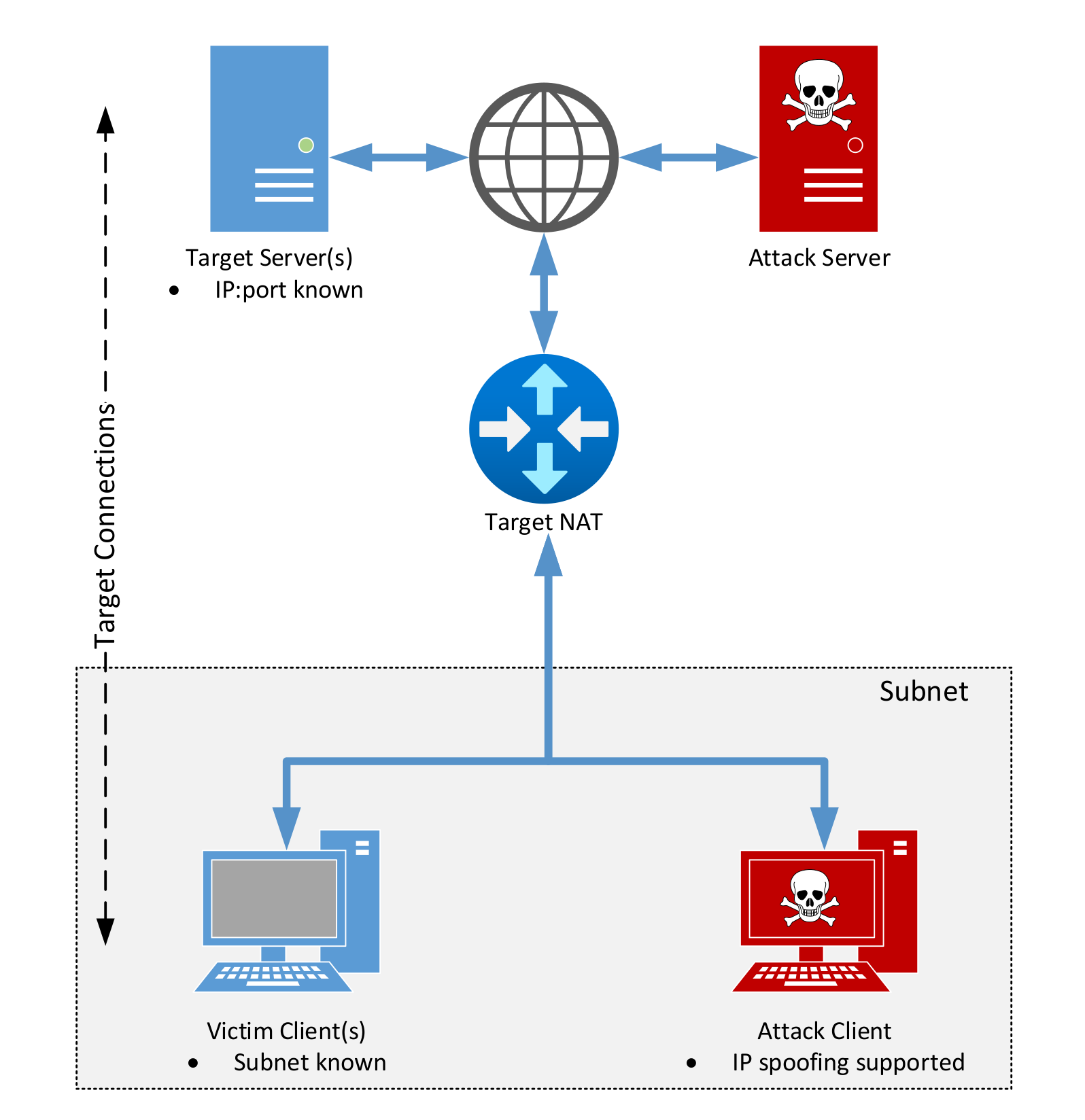

Certain NAT implementations expose weaknesses in ephemeral port assignment and connection mapping behavior that allow a downstream attacker to infer active NAT mappings associated with out downstream clients. By leveraging predictable NAT port allocation behavior and crafted probing traffic, an attacker may determine the external ephemeral port associated with a victim connection and, under certain conditions, identify the corresponding internal client IP address. This information disclosure may facilitate subsequent attacks including TCP session hijacking and DNS response interception.

Vulnerability Description

Certain Network address translation (NAT) implementations are vulnerable to NAT table exhaustion attacks due to insufficient controls on connection state allocation and retention. An attacker positioned on the downstream (LAN) side of the affected device can generate large numbers of spoofed TCP or UDP flows that cause the NAT table to become saturated with persistent entries. Once the NAT table is exhausted, legitimate downstream clients may be unable to establish new outbound connections, resulting in a denial-of service condition affecting network and internet access.

Black Hat Briefing

This research was presented at Black Hat USA on August 6, 2026 as Breaking Trust Boundaries: Exploiting Design Assumptions in Network Infrastructure. Slides will be made available for download.

CVEs, Patches and Advisories

CVEs
Patches
AWS Public Statement

AWS investigated and deployed mitigations for reported behavior related to connection state management in services that perform port-level network address translation, NAT gateway and Network Load Balancer (NLB).

This research describes a scenario in which an actor with control of an EC2 instance within a VPC could send crafted TCP reset packets to manipulate NAT flow state, potentially enabling session disruption or interception of TCP and UDP connections traversing the NAT. The described scenario requires the actor to already control an instance within the same VPC as the targeted connection.

AWS has deployed updates across both services that strengthen connection state validation, including enhanced verification of TCP reset packets before modifying flow state. These mitigations are effective across all AWS Regions. Customer applications must follow TCP and UDP best practices, by ensuring that their sockets are closed after the application's idle timeout expires. No further customer action is required to inherit protection. Customers with high connection volumes and long-lived connections should monitor port utilization and may need to allocate additional Elastic IP addresses (NAT gateway) or expand target/subnet capacity (NLB) to accommodate longer port hold times introduced by this hardening [1][2].

The research also describes an information-disclosure technique in which an actor can infer in-use external NAT ports by observing responses to crafted SYN and ACK floods. This technique requires both an instance within the same VPC as the port disclosure sought and a cooperating external server capable of IP spoofing. The disclosed port information is limited to external NAT port numbers in use and does not reveal associated client IP:port pairs. AWS mitigations prevent the session manipulation techniques that would otherwise leverage this information.

We appreciate Malcolm Stagg's (SODIUM-24, LLC) commitment to coordinated disclosure and constructive collaboration throughout this process, and we encourage continued engagement from the security research community.

[1] https://docs.aws.amazon.com/vpc/latest/userguide/nat-gateway-troubleshooting.html

[2] https://docs.aws.amazon.com/elasticloadbalancing/latest/network/load-balancer-troubleshooting.html

Social Media

#natjack

Until more vendor patches are available, mitigation strategies will be necessary for the forseeable future. Use #natjack on social media to share and track custom mitigation strategies, vendor security advisories, and patch releases.

How can I make my network more secure?

🔒 Encryption

  • Use TLS (including HTTPS) everywhere, even on internal systems. This will completely prevent useful hijacking of connection data.
  • Use DNS security such as DNSSEC to prevent spoofing of DNS responses. DNS encryption such as DNS over HTTPS or DNS over TLS is also recommended to prevent hijacking.

🐳 Containers and Virtualization

  • Disable network access of untrusted containers and virtual machines when possible, or set them up in a private internal network.
  • Run untrusted containers or virtual machines on their own isolated host machine.
  • Avoid running containers as root.
  • Drop the enabled-by-default NET_RAW permissions when running an untrusted container using --cap-drop=NET_RAW.

☸ Kubernetes

  • Run untrusted kubernetes pods on a different node than trusted pods, in both local and cloud-based deployments.
  • Avoid running kubernetes pods as root.
  • Drop the enabled-by-default NET_RAW permissions using securityContext.capabilities.drop.

☁️ Cloud

  • Avoid placing untrusted and trusted VMs/containers behind the same NAT gateway, internet gateway, or cloud NAT.
  • Use dedicated IPs for serverless computing rather than shared IPs, for better network isolation from other tenants.

🖧 Routers and Firewalls

📊 Monitoring and Detection

Several common indicators of compromise (IoCs) include:

  • NAT table full: A full, or nearly-full, NAT table.
  • Port range flood: A flood of TCP or UDP packets from a downstream endpoint with a large range of source ports.
  • IP spoofing: It may be possible to detect downstream IP spoofing, in some cases, by detecting the same IP address being used by two different physical addresses, or the same physical address sending packets from multiple IP addresses.
  • Sequence of packets: Certain packet sequences from a downstream endpoint, such as SYN, RST or SYN, RST, SYN, sent sequentially with a consistent source and destination port.
  • TCP RST flood: A flood of RST packets from an upstream or downstream endpoint where the sequence number is varied.
  • Invalid sequence numbers: TCP packets containing sequence numbers far outside their current TCP window.
  • Reduced TTL: Packets may be sent with a reduced time-to-live (TTL) to reach only as far as the NAT device before being destroyed. This might be used by an attacker to prevent a standard endpoint response or to try to evade detection.

Additional Resources

NatJack White Paper (Free Download) Coming Soon!

A free white paper with more details about these attacks and potential mitigation strategies will be available for download. Please check back shortly.

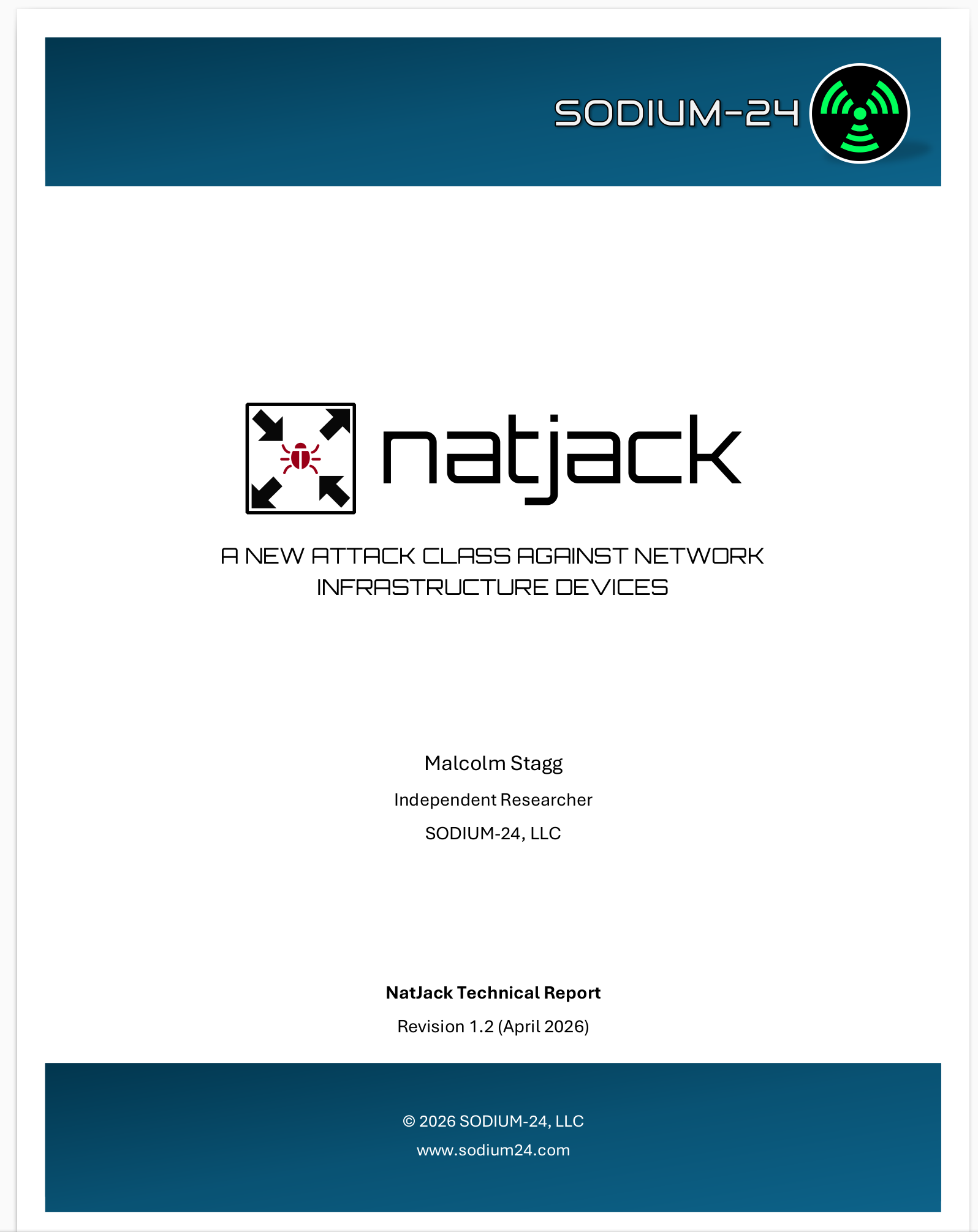

NatJack Technical Report Coming Soon!

The NatJack Technical Report is a highly detailed technical document containing in depth attack details, pseudocode, test framework design, and attack modeling. Initial document release will focus mainly on Netfilter, with additional updates providing other vendor case studies. Release date TDB.

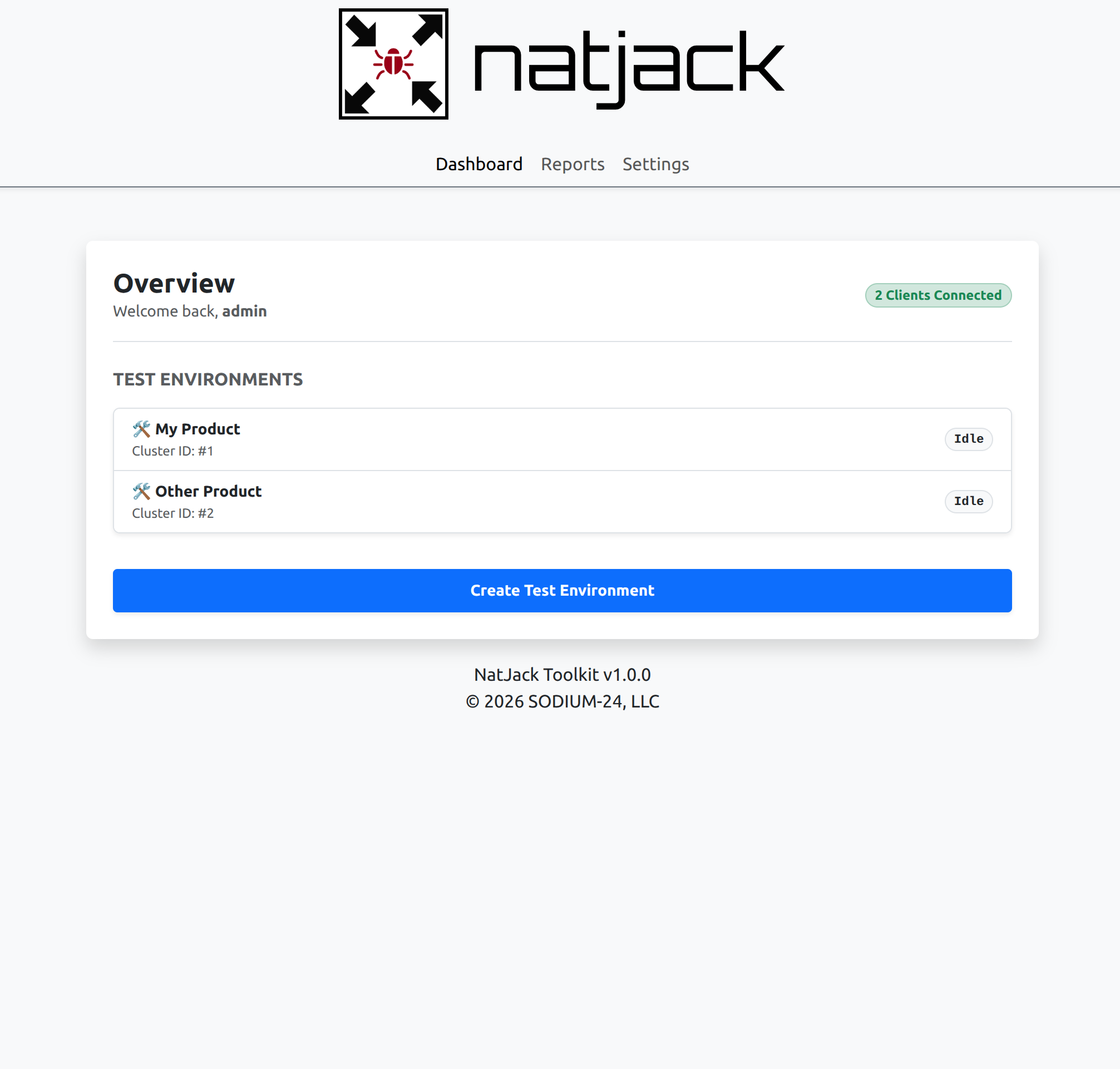

NatJack Defensive Toolkit Coming Soon!

The NatJack Defensive Toolkit will enable testing and characterization of network infrastructure in live and lab environments, with automatic report generation to help determine susceptibility to the various NatJack attack variations and provide mitigation recommendations. Release date TDB.

Stay Informed

Sign Up for NatJack Resource Updates

Acknowledgements

I would like to thank Yang et al. for their earlier research on NAT table manipulation attacks, which led to CVE-2023-30305 to CVE-2023-30314.

Thank you to all the vendors and CERT/CC for engaging with this research.

Special thanks to Vicki Stagg and Andrew Stagg for their unconditional support, and to Neil Graves for his help obtaining routers and advice for navigating a complex disclosure.

Shout out to a few of my colleagues for their support:

Can I use the logo?

The NatJack name and logo are open-source visual assets designed to aid public awareness.

Media Kit

Logo and Media Usage Policy

  • Permitted use: Media outlets, academic researchers, and independent security analysts are fully permitted to download, reproduce, and display the official NatJack logo in news articles, presentation slides, blog posts, and educational videos under Fair Use principles.
  • Prohibited use: Commercial use including merchandise, paid marketing materials, or embedding the logo into proprietary scanning software is strictly prohibited without prior written authorization.
